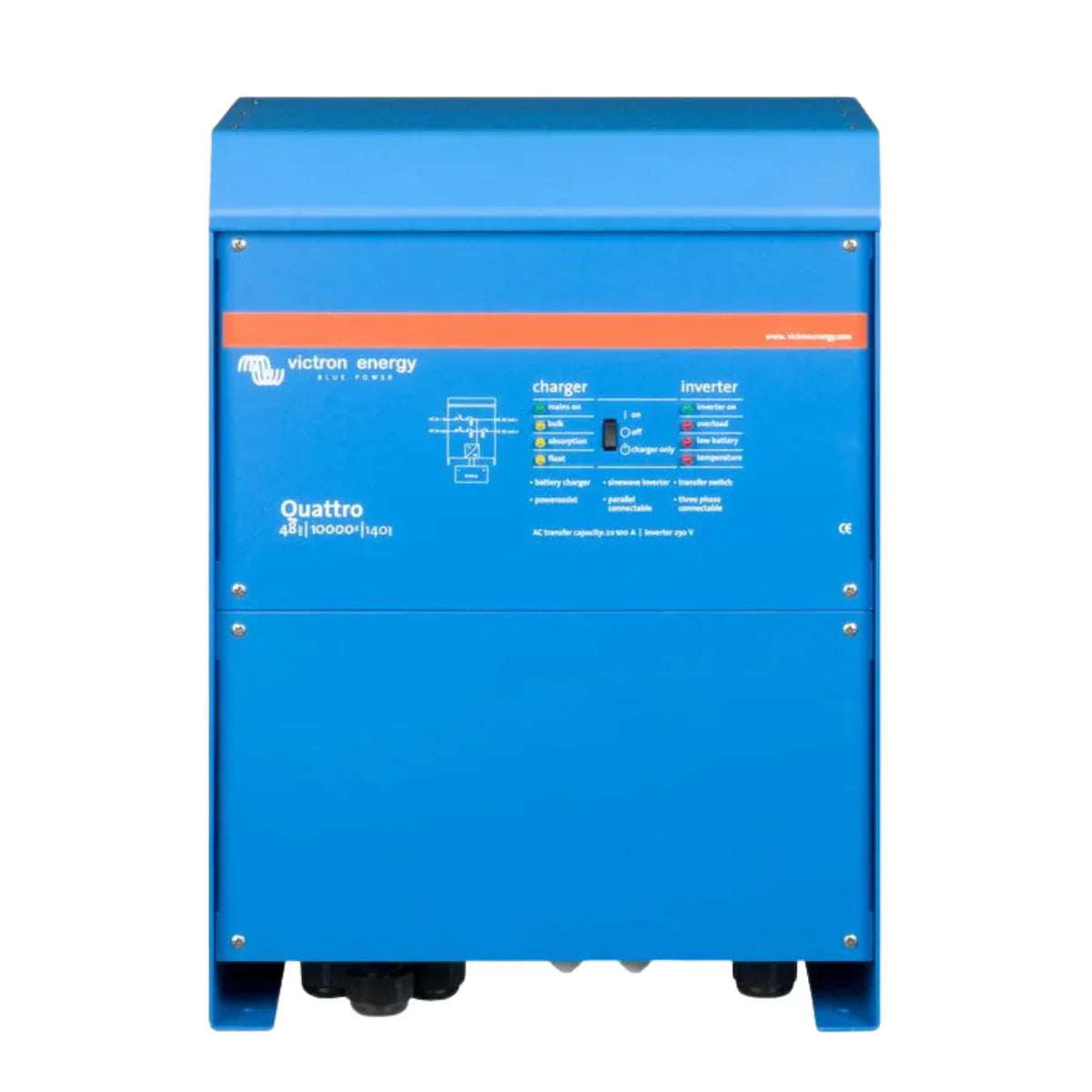

Victron Quattro 48/10000/140-100/100 230V VE.Bus

Victron Quattro 48/10000/140-100/100 230V VE.Bus

The Victron Quattro is a powerful all-in-one inverter and charger designed for advanced energy systems. Similar to the MultiPlus, it combines a true sine wave inverter and adaptive charger in one compact unit — but with added flexibility. The Quattro can accept two independent AC inputs (for example, from grid and generator) and automatically connect to the active source.

Product Features:

• Dual AC Inputs – Connect to two independent power sources (e.g., grid and generator); automatically switches to the active source.
• Two AC Outputs – Main output offers seamless power transfer (<20 ms); second output powers non-critical loads only when AC is available.
• Split Phase Option – Create a 240V/60Hz split phase setup using an autotransformer.
• Three-Phase Capability – Combine up to 12 units for 144 kW / 180 kVA output and 2400 A charging capacity.
• PowerControl – Prevents overloads by limiting current draw from shore or generator power.
• PowerAssist – Boosts limited power sources by combining battery and AC power during peak demand.
• Solar Ready – Works with off-grid or grid-connected PV systems; provides AC power even during grid outages.
• Easy Configuration – Quick setup via DIP switches or VE.Bus software tools.
• Smart Monitoring – On-site or remote control via GX devices, smartphone, or VRM Online Portal for real-time performance tracking and remote adjustments.
