Sunsynk 5kW, 48Vdc Single Phase Hybrid Inverter
- Regular price
- R 8,268.50
- Regular price
-
R 16,537.00 - Sale price
- R 8,268.50
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
R 8,268.50
- Description
- Product Reviews
- Privacy policy

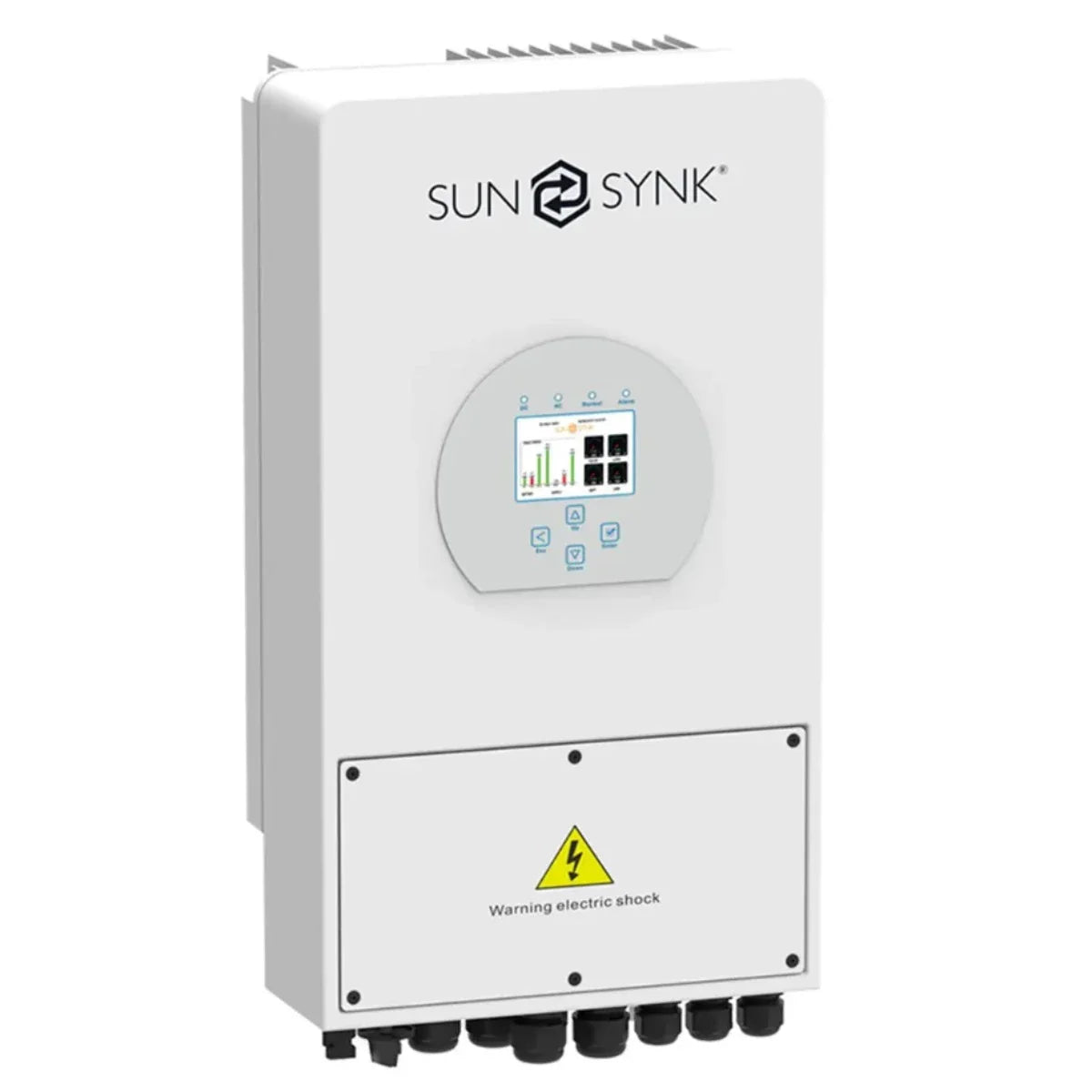

Sunsynk 5kW, 48Vdc Single Phase Hybrid Inverter with WIFI included.
The Sunsynk 5kW Hybrid Inverter is ideal for managing power flow from multiple sources such as solar, mains grid, battery, and generator.
Delivery and Packaging are to be calculated on request.
Product Features
- Compatible with a wide range of lithium-ion and lead-acid batteries
- Mobile App for monitoring
- IP65 rated
- Automatic switching from grid-tied to off-grid mode
- Zero export power capability
- 16 x units can be paralleled in a single installation
- Essential and non-essential loads outputs
- Wi-Fi dongle (for remote monitoring) and CT-clamp as standard
- Battery Voltage - 48Vd.c (40Vd.c ~ 60Vd.c)
Specifications:
- Sunsynk-5.5-K-SG01LP1
- Weight:25 kg
- Rated Power: - 5,000W
- Min PPT Voltage: - 125 V
- Max PPT Voltage: - 425 V
- DC Startup Voltage: - 150 V
- DC Shutdown Voltage: - 150 V
- Max Input Voltage: - 500 V
- Max DC Power: - 6,500 W
- Max AC Power (5 Minutes): - 5,500 W
- Surge AC Power (1 Second): - 11,000 W
- Max DC Current: - 22 A
- Max DC Inputs: - 2
- Connector: - MC4
- Included Connectors: - 0
- Euro Efficiency: - 96.5 %
- Transformer: - None
- MPPT Quantity : - 2
- Has Integrated DC Switch: - Yes
- All new Sunsynk Inverters come with the new data logger.
Documents:
SUNSYNK_HYBRID_INVERTER_3.6_5_USERMANUAL_V20_ENGLISH
SUNSYNK_INVERTER_APP
TRAINING_MANUAL_SUNSYNK_-_PART_2_V1.2
TRAINING_MANUAL_SUNSYNK_-_PART_1_HQ
SUNSYNK_HYBRID_INVERTER_3.6_5KW_DATASHEET_V15_ENGLISH_1
Product Notes:
Installations with Sunsynk products now need to be registered here, (https://www.sunsynk.org/warranty), to gain full activation of the warranty.
Please ensure that you check that the Inverter is updated to the latest firmware version. For firmware updates, ensure that the inverter is on bypass mode and the PV is off. Failure to do this may damage your inverter.
Warranty Extension
The warranty extension on the Sunsynk inverter from the standard 5 years to 10 years will be in place if the inverter is paired with the following Sunsynk batteries. 1) SUN-BATT 5.32kwh 2) SUN-BATT 10.65kwh 3) SUN-BATT 15.97kwh. Note that the warranty is only valid if the system has been installed by an accredited and experienced installer, and that it is registered on the Sunsynk website. This warranty extension only applies to new inverters when paired with the above-mentioned batteries. The battery needs to have been purchased from an approved distributor or reseller. The standard warranty on the Sunsynk inverter is 5 years, the standard warranty on the Sunsynk battery is 10 years. Sunsynk reserves the right to administer the warranty at its discretion.
