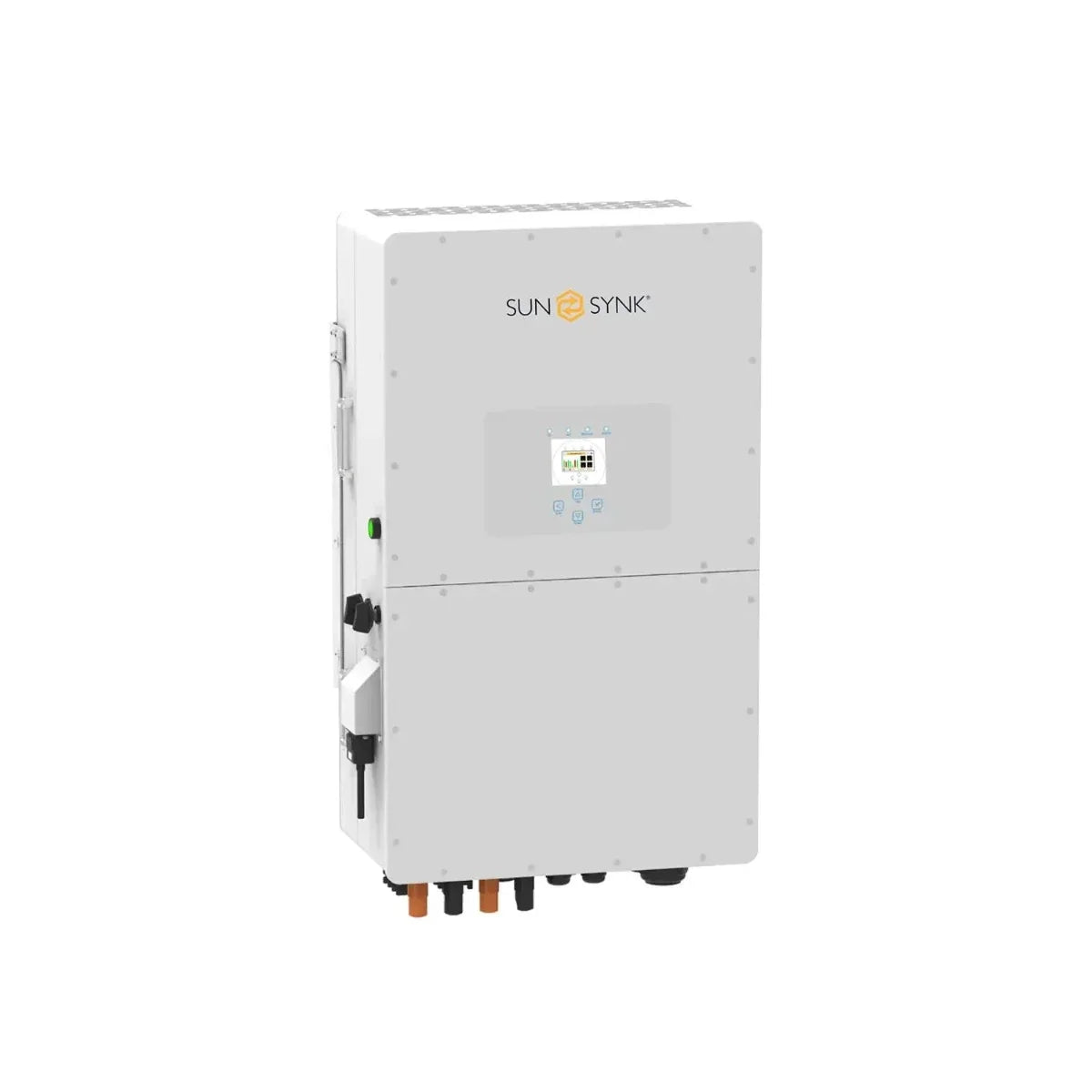

Sunsynk 50kW HV Three Phase Hybrid Inverter

Sunsynk 50kW HV Three Phase Hybrid Inverter

The Sunsynk Three-Phase Hybrid Inverter is a highly efficient power management tool that allows the user to hit those ‘parity’ targets by managing power flow from multiple sources such as solar, mains power (grid), and generators, and then effectively storing and releasing power as and when utilities require.

Delivery and Packaging are to be calculated on request.

Product Features:

INTERACTIVE

• Easy and straightforward to understand LCD display
• Supporting Wi-Fi or GSM monitoring
• Visual power flow screen
• Built-in 2 strings for 1 MPP tracker and 1 string for 1 MPP tracker
• Smart settable 3-stage MPPT charging for optimised battery performance
• Auxiliary load function
• Multi-inverter function: grid-tied and off-grid

COMPATIBLE

• Compatible with mains electrical grid voltages or power generators
• Compatible with wind turbines
• 230V/400V Three-phase Pure Sinewave Inverter
• It can power up both single-phase and 3-phase loads
• Self-consumption and feed-in to the grid
• Auto restart while AC is recovering
• Maximum charging/discharging current of 50A + 50A
• DC and AC coupled to retrofit existing solar system
• Compatible with high-voltage batteries (600V)

Specifications:

•  Weight: - 75 kg

• Rated Power: - 50,000W
• Min PPT Voltage: - 150V
• Max PPT Voltage: - 850V
• DC Startup Voltage: - 180V
• DC Shutdown Voltage: - 150V
• Max Input Voltage: - 1,000V
• Max DC Power: - 65,000W
• Max AC Power (5 Minutes): - 55,000W
• Surge AC Power (1 Second): - 75,000W
• Max DC Current: - 144A
• Max DC Inputs: - 8
• Has DC Fuses: - 0
• Connector: - MC4
• Included Connectors: - 0
• Euro Efficiency: - 99.9%
• Transformer: - None
• MPPT Quantity : - 4
• Has Integrated DC Switch: - Yes
• Warranty: - 5 years

The Inverter Can Only Be Ordered Under These Conditions:

• The installer must be registered with the DOL (Department of Labor)
• The installer must be three-phase qualified.
• A HV training course must have been attended with the battery manufacturer they plan to use on the installation i.e., Freedom Won.
• The requirements above are directly from Sunsynk as described in the Terms and Conditions document that can be requested from sales@crystalcom.co.za
• It is important to note that the person installing the inverter must comply with the above, if the installer does not comply then the warranty may be void.

Important Notice: Click Here

Delivery and Packaging to be calculated on request.
