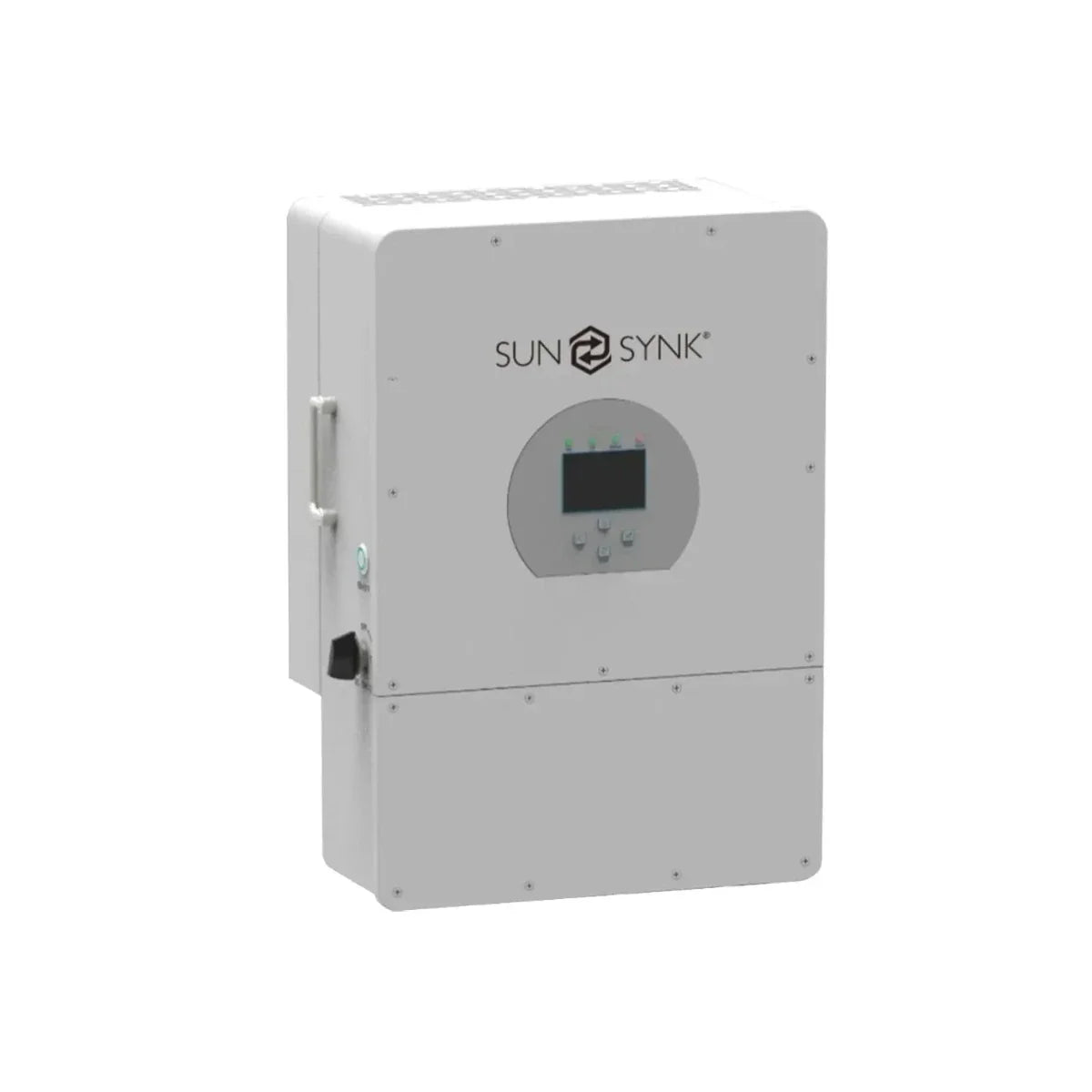

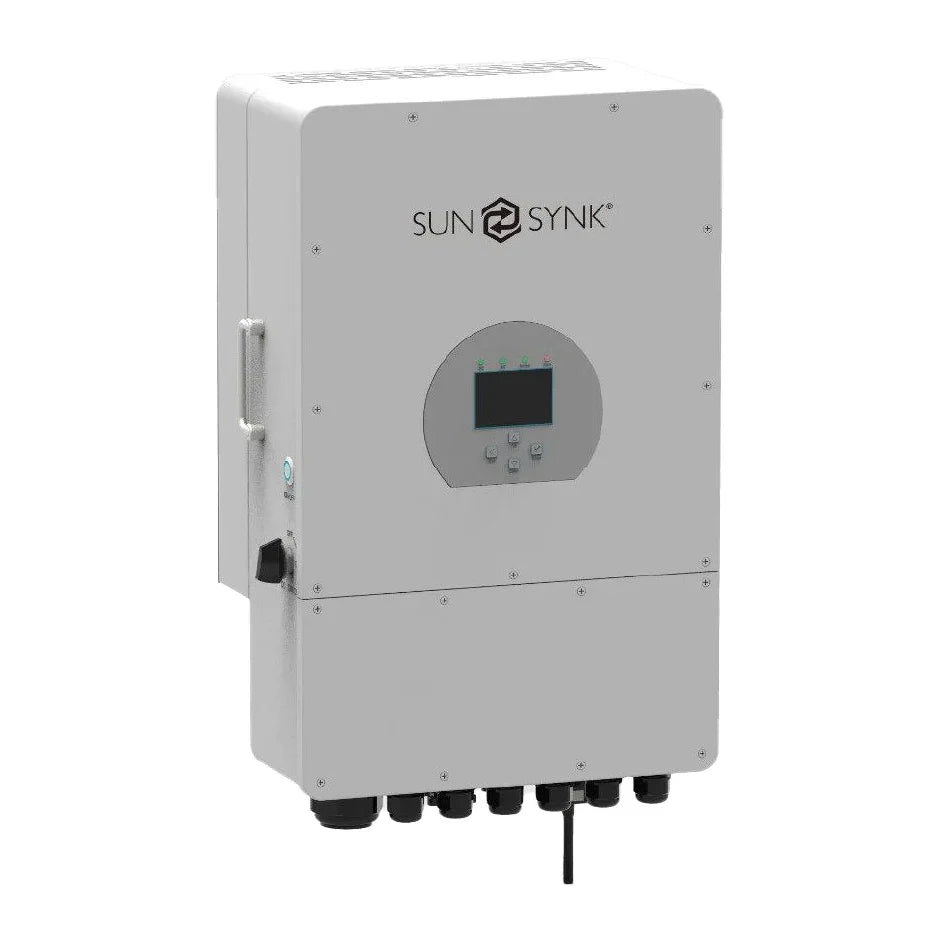

Sunsynk 12kW, 48Vdc Three Phase Hybrid Inverter with WIFI

Sunsynk 12kW, 48Vdc Three Phase Hybrid Inverter with WIFI

The Sunsynk three phase hybrid Inverter is the ideal inverter for managing power flow from multiple sources such as solar, main electrical grid and generator for residential or commercial purposes.

Specifications:

• Weight:  45 kg
• Rated Power:  12,000 W
• Min PPT Voltage:  160 V
• Max PPT Voltage:  800 V
• DC Startup Voltage:160 V
• DC Shutdown Voltage:  150 V
• Max Input Voltage:  650 V
• Max DC Power:15,000 W
• Max AC Power (5 Minutes):  13,200 W
• Surge AC Power (1 Second):24,000 W
• Max DC Current:  37.5 A
• Max DC Inputs:  3
• Has DC Fuses:  0
• Connector:  MC4
• Included Connectors:  0
• Euro Efficiency:  99.9 %
• Transformer:  None
• MPPT Quantity :  2
• Has Integrated DC Switch:  Yes
• Warranty:  5 years

Optional other parts to consider:

1. ACDB-3PH-I20A-II-1O Three Phase AC Protection Box 1-In 1-Out 20A Type II SPD
2. SUN-CAN-3M For installations with US3000C, US2000C and UP5000 batteries this BMS cable is required.

Important Notice: Click Here

Installations with Sunsynk products now need to be registered to gain full activation of the warranty.  https://www.sunsynk.org/warranty

For firmware updates, ensure that the inverter is on bypass mode and the PV is off. Failure to do this may damage your inverter. Please ensure that 12kW Sunsynk 3ph Inverter is updated to the latest firmware version 1096 E013. The update must be done before the system is switched on. This is imperative mainly for parallel or three phase systems to prevent inverter damage and malfunction.
