Luxpower 10KW LV Single Phase Hybrid Inverter
- Regular price
- R 8,866.50
- Regular price
-
R 17,733.00 - Sale price
- R 8,866.50
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
R 8,866.50
- Description
- Product Reviews
- Privacy policy

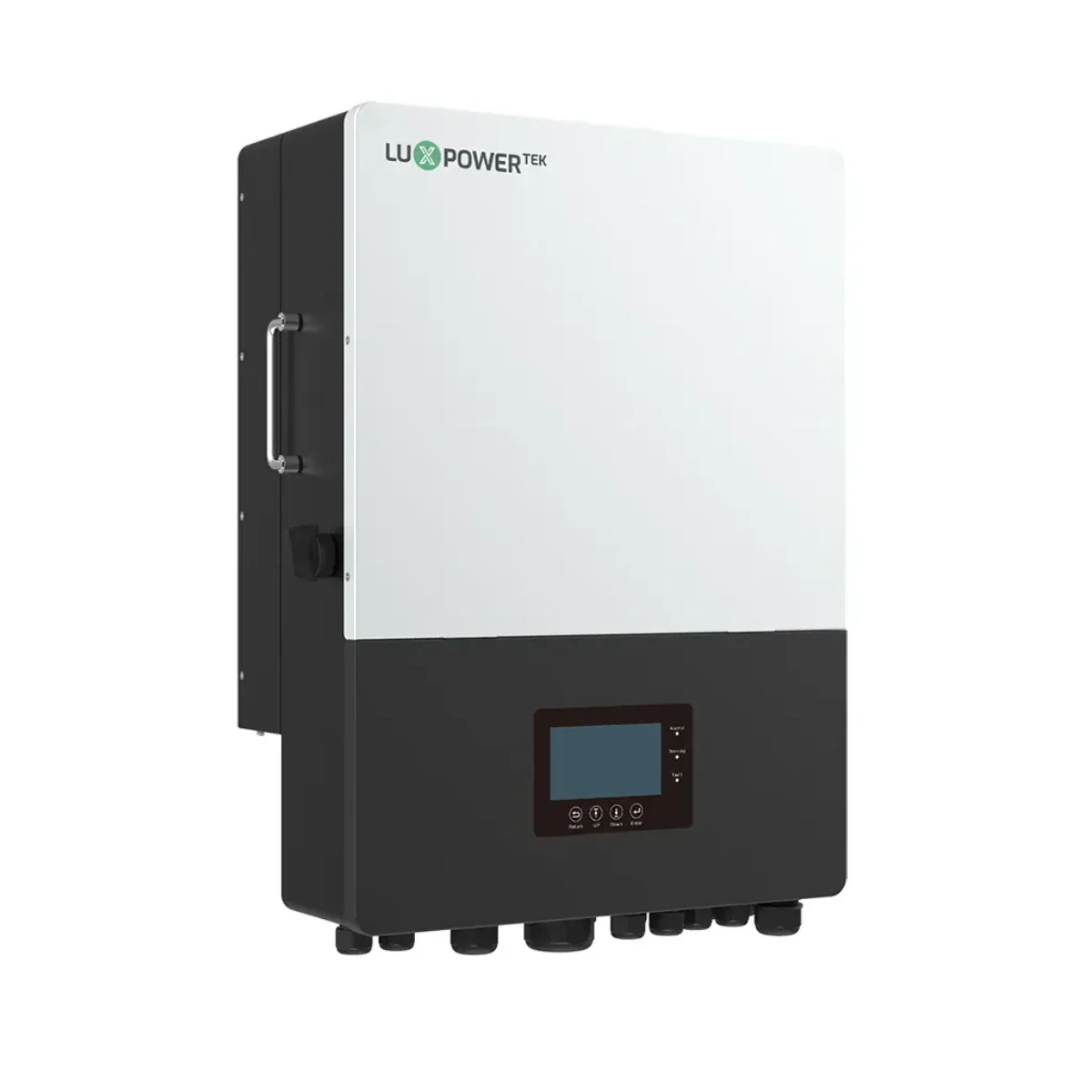

Luxpower 10KW LV Single Phase Hybrid Inverter
A recently developed off-grid inverter for solar and energy storage, the LXP Hybrid Inverter is versatile enough to be installed in on-grid solar, off-grid solar, and backup systems. This inverter allows for a programmable and scheduled smart solar energy storage system, aiding in boosting your self-consumption of solar energy, safeguarding your home appliances during grid shortages, and optimizing your energy usage to reduce your overall energy bills.
Product Features:
- Advanced Parallel up to 120Kw
- Separate Generator Interface Available
- Transformerless Design
- Colour LCD, IP65
- Self-consumption mode: Solar power will be utilized to meet the household load initially; any surplus solar power will then be directed to charge the battery. Once the battery is fully charged, any excess solar power can be fed into the grid.
- Force charge and discharge mode: The Off-Grid Solar Inverter will charge or discharge the battery based on the user-set time parameters.
- Charge first mode: Solar power will be employed to charge the battery initially, followed by meeting the household load, and finally, any remaining power will be fed into the grid. This off-grid inverter mode is particularly suitable for areas where grid power supply is unreliable.
- The LXP Off-Grid Solar Inverter MG series supports parallel connection functionality.
Specifications:
-
INPUT (PV DC):
- Max. PV array power(W): 15000
- Rated PV input voltage(V): 360
- Number of independent MPPT inputs: 2
- PV input voltage range(V): 100 - 600
- MPPT voltage range(V): 120 - 480
- Start-up voltage(V): 140
- Max. PV input current per MPPT(A): 25/25
- Max. PV short-circuit current input per MPPT(A): 31/31
-
Battery:
- Compatible battery type: Lithium-ion/Lead-Acid
- Rated battery voltage(Lithium-ion/Lead-Acid)(V): 48
- Battery voltage range(V): 40 - 60
- Max. charging/discharging current(A): 210
- Max. charging/discharging power(W): 10000
-
Grid:
- Rated AC voltage(V): 230
- Rated AC frequency(Hz): 50
- Rated AC output current(A): 43.5
- Rated AC output power(W): 10000
- Max. AC intput current(A): 90
- Max. AC intput power(W): 20700
- PF: 0.99
- THDI: <3%
- Rated AC current of BYPASS relays(A): 90
