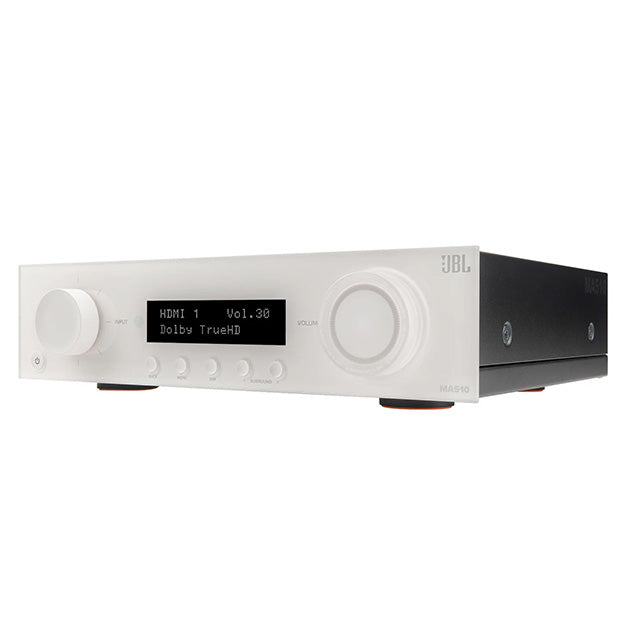

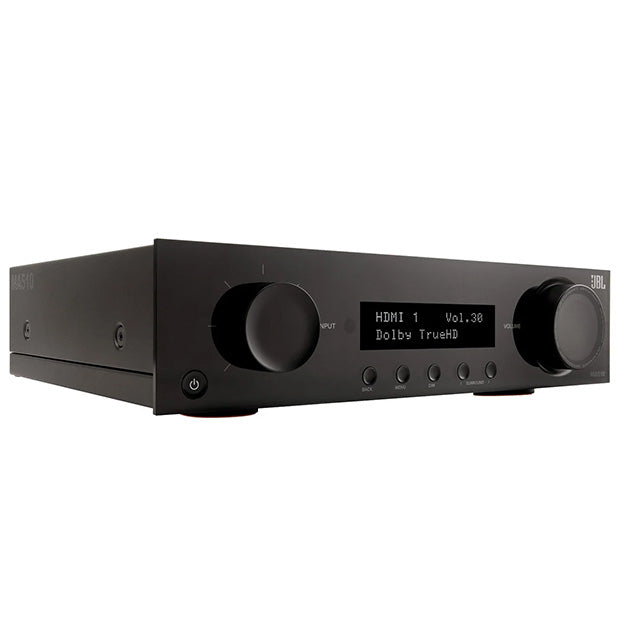

JBL MA710 7.2 Channel 8K AV Receiver

The JBL MA710 is an AV Receiver that delivers stunning realism with the latest 8K HDMI specifications and native 7-channel decoding of immersive audio from Dolby Atmos and DTS:X for the ultimate home cinema experience.

Seamlessly integrate your smart TV or projector with 6 HDMI inputs and 1 output, plus eARC. It is designed with a passion for music and movies, bringing both to life with true high fidelity. The MA710 features seven channels of low noise Class D amplification for real world power to all channels. In addition to the onboard Moving Magnet phono input for connecting a turntable, additional music content can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, and Bluetooth AptX Adaptive. Audio sources can be played to a second Zone, making audio available in a secondary location. In addition to physical controls, the MA710 allows for IP control for third party control system integration.

7.2-channel AV receiver that delivers stunning realism with the latest 8K video for the ultimate home cinema experience

Stream music wirelessly via Bluetooth andnetwork streaming (Apple Airplay 2, Google
Chromecast)

Seven channels of low noise Class D amplification for real world power to all channels

Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more
with 6 HDMI inputs and 1 output, plus eARC

Moving magnet phono input for connecting a turntable

EZ Set EQ provides easy-to-use room equalization for optimized sound quality

Dolby Atmos and DTS:X decoding, supports up to 7.1 or 5.1.2 channel configurations

On-screen display for easy system setup and operation (via HDMI)

• 7.2-channel AV receiver that delivers stunning realism with the latest 8K video for the ultimate home cinema experience
• Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 6 HDMI inputs and 1 output, plus eARC
• Dolby Atmos and DTS:X decoding, supports up to 7.1 or 5.1.2 channel configurations
• Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google
Chromecast)
• Moving magnet phono input for connecting a turntable
• On-screen display for easy system setup and operation (via HDMI)
• Seven channels of low noise Class D amplification for real world power to all channels
• EZ Set EQ provides easy-to-use room equalization for optimized sound quality

Specifications

Amplifier Section
Channels 7.2
Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max) 110 W RMS
Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max) 160 W RMS

Video Features
HDMI eARC Yes
HDMI Audio Return Channel Yes
8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz) 3
HDMI 2.1 enhanced gaming features Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)
HDR 10+, Dolby Vision Yes, Yes

Audio Features
File format MP3 / MPEG-4 AAC: up to 48 kHz / 320kbps
WMA: up to 48 kHz / 192kbps
ALAC: up to 192 kHz / 24-bit
FLAC: up to 192 kHz / 24-bit
PCM / WAV / AIFF: up to192 kHz / 24-bit
Pure Direct Yes
EZ/Set EQ Yes
Front channel bi-amp Yes
DA converter 192kHz/24-bit

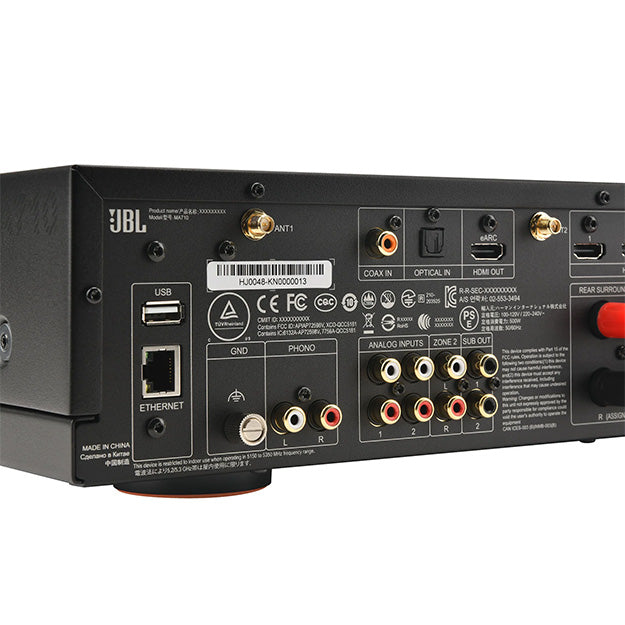

Connectivity
HDMI Input/Output 6 / 1
Wi-Fi Yes (2.4 / 5GHz)
Bluetooth receive Yes (v5.3, Low Energy, APTX HD, APTX Adaptive)
Digital Audio Input 1 Coax, 1 Optical
Stereo analog input 2 single-ended RCA
Pre-Out (single ended RCA) Stereo Zone 2, Subwoofer 1, Subwoofer 2

General
Mains voltage 110 – 240V, 50–60Hz
Max. power consumption 500W
Standby power consumption <0.5W
Dimensions incl. feet and speaker terminals (H x W x D) 4.3” x 17.0” x 13.7” (109.9mm x 432.0mm x 347.6mm)
Weight 13.8lb (6.3kg)

What's In The Box
1 x MA710 AV Receiver

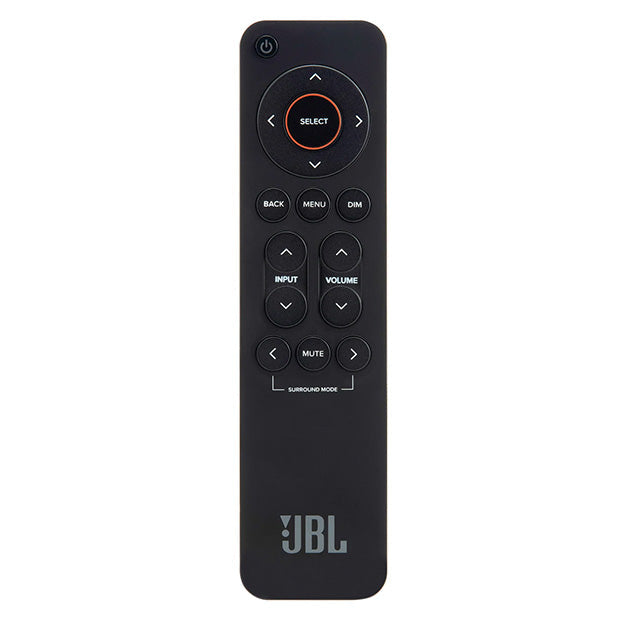

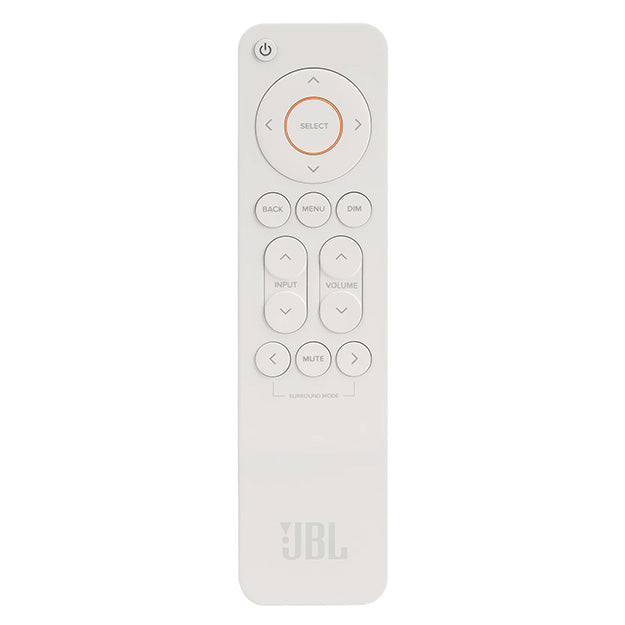

1 x IR remote
2 x AAA batteries
1 x Bluetooth antenna
2 x Wi-Fi antenna
1 x power cord
