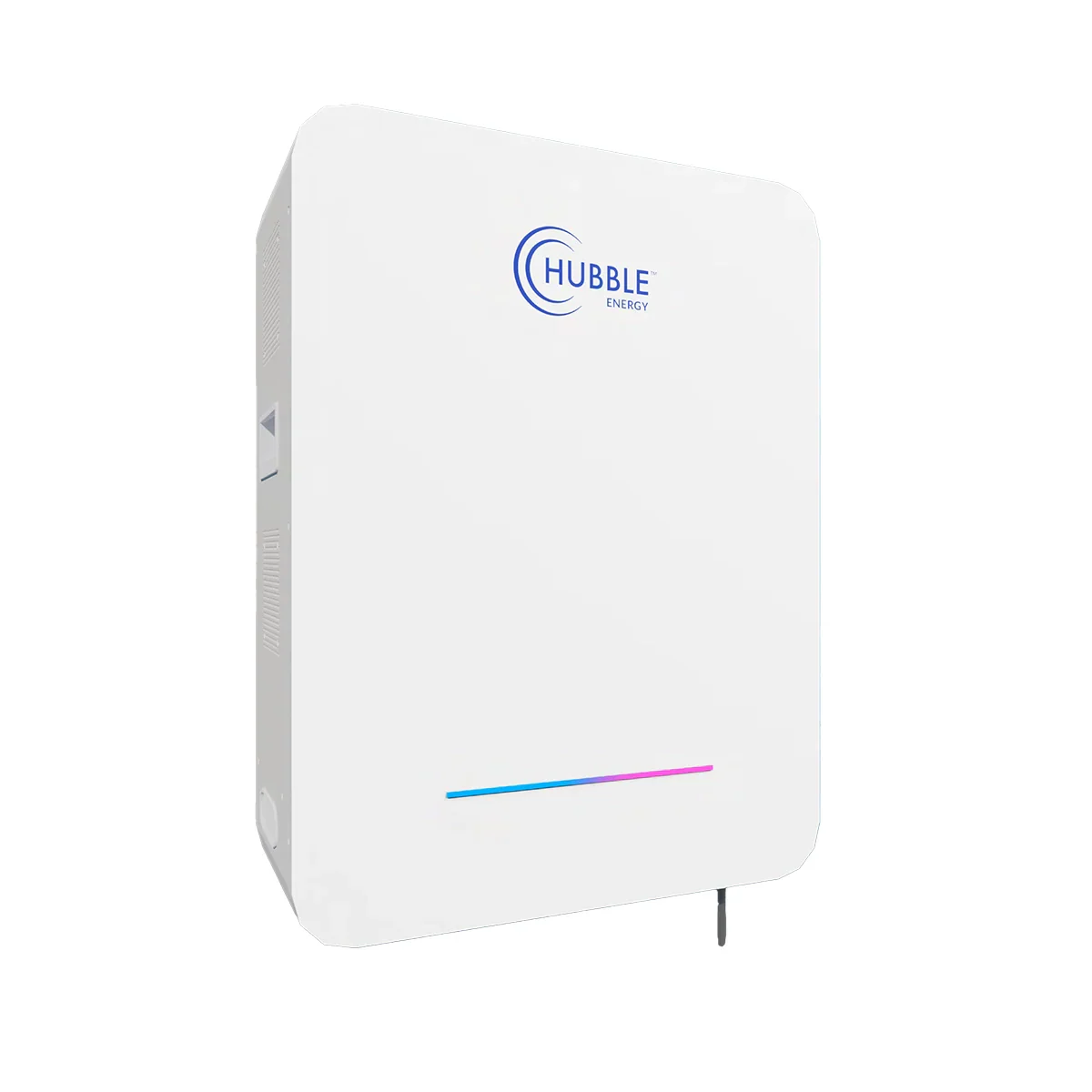

Hubble Lithium AM10+, 10kWh 51.2V Battery

Hubble Lithium AM10+, 10kWh 51.2V Battery

Hubble Lithium's AM10+ model is a low voltage (51V), 10kWh battery made up of superior prismatic lithium-ion cells. These battery cells have more energy density and a longer cycle life compared to standard lithium cells.

Product Features

• Unlimited Cycle Warranty (Terms & Conditions Apply)
• Prismatic LiFePO4 Cells for enhanced durability and performance
• 1C High Performance Lithium Battery for efficient energy delivery
• Integrated 24/7 Monitoring with the Hubble Cloudlink
• Advanced BMS with current limiting functionality for optimal operation
• Easy Wall Mount Installation for space-saving convenience
• Informative RGB LED Display Strip for at-a-glance system status
• High Cycle and Service Life for long-term reliability
• Compatible with Most Inverters and Chargers for versatile integration
• Built-in Protection against over-charge, over-discharge, and over-temperature
• CAN Bus Compatibility for seamless communication with leading inverter brands
• Scalable System design, supporting up to 15 units for expanded capacity
• Compatible with AM-10 (with Cloudlink) for added functionality and control


Specifications:

• Battery Parameters

  • Model: Hubble AM-10+
  • Battery Type: LiFePO4 (LFP) with 16 cells per battery
  • Nominal Voltage: 51.2 Vdc
  • Nominal Energy: 10 kWh
  • Design Capacity: 200 Ah
  • Operating Voltage Range: 43.2 Vdc – 58.4 Vdc
  • Charging Voltage: 55.2 Vdc
  • Charge Current (Max): 115 A
  • Discharge Current (Max): 200 A
  • Cell Service Life: Unlimited cycles within the 10-year warranty (Terms & Conditions Apply)
  • Design Lifetime: 15 years




• Battery Management System (BMS)

  • Power Consumption: ≤ 2 W
  • Cell Balancing: Passive, activated when cells are near full charge voltage
  • Intelligent Current Limiter: Limits charging current to 20 A if it exceeds 200 A
  • Protection: Over-charge, over-discharge, over-current, short circuit, and over/under-temperature




• Cloudlink (Monitoring)

  • Power Consumption: ≤ 2 W
  • Wi-Fi Protocol: 802.11 b/g/n/e/i (supports 802.11n up to 150 Mbps)
  • Communication Interfaces: CAN / RS485 / RS232




• Physical

  • Dimensions: 675 mm (Height) × 510 mm (Width) × 230 mm (Depth)
  • Weight: 89 kg
  • Installation: Wall-mounted with a mounting bracket
