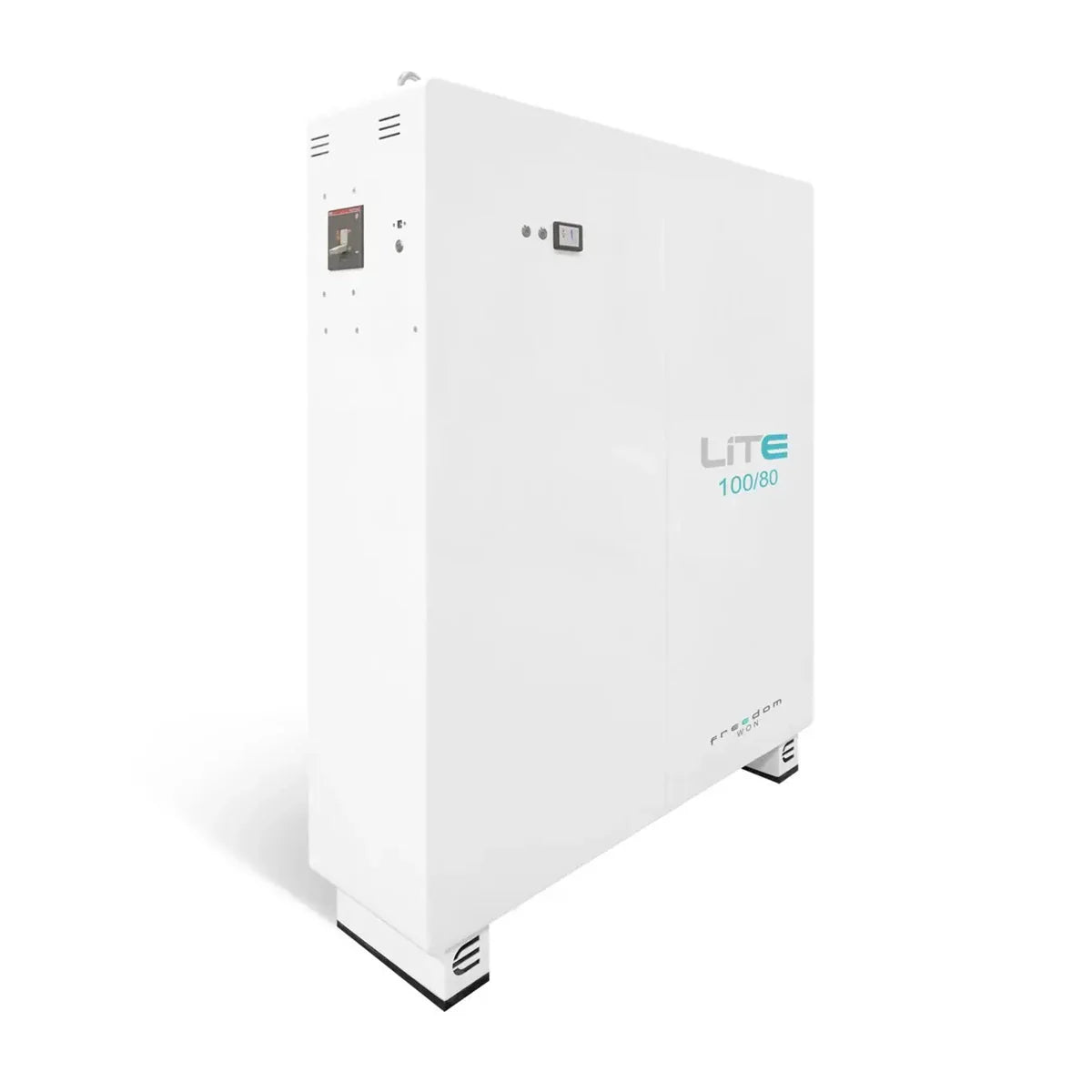

Freedom Won Lite 2 Commercial 100/80 HV (High Voltage) Battery 100kW

Freedom Won Lite 2 Commercial 100/80 HV Battery 100kW/512V

*Updated Specifications Coming Soon

This Freedom Won Lite Commercial HV LiFePO4 battery is the perfect high quality battery for all your large commercial and industrial solar solutions. The range is from 100KWh to 700KWh batteries.

Product Features:

• Large Commercial Storage solution in single deployment
• 10 year Local manufacturer's warranty.

Specifications:

• Total Energy Capacity [kWh] - 100
• 80% DoD Energy [kWh] - 80
• 90% DoD Energy [kWh] - 90
• Current Capacity [Ah] - 200
• Max & Cont. Charge Current [A] - 200
• Max & Cont. Charge Power [kW] - 102
• Max/Cont. Discharge Current [A] (note1) - 300/250
• Max/Cont. Discharge Power [kW] (note1) - 154/128
• Nominal Voltage [V] - 512
• Max/Min. Operating Voltage [V] - 568/456
• Max Recommended Inverter Total Rated Power (cont.) [kVA] - 120
• Total Weight [kg] - 914
• Battery Dimensions - H x W x D [mm] (note2) - 1405x1636x365
• DC Connection Power Cables (no. per electrode) [mm²] (note3) - 1x95mm² Helukabel NSGAF öU (Detachable Power Connector)
• Round Trip Efficiency - 96-97%
• Enclosure - 3mm thick Aluminium, powder coated, tamper proof, indoor use
• External Interface - CAN Bus
• On-board Management - Full battery management system and internal trip protection
• Human Interfaces - On and Off Buttons, State of Charge Display (0 to 100%), Error light, Error Reset Button, CANdapter for Programming and data access with PC, main breaker
• Remote Monitoring - Real time data logging and transmission via WiFi to online portal of key battery information
• Warranty (note5) -  Standard Warranty: 10 years (or 6000 cycles) 80% DoD, 0.5C Max Discharge, 0.25C Max Charge, Max 25°C
• Design Life – Cycles  -  >16 years (>5 500 cycles) expected life at 80% DoD per cycle, >20 years (>7 500 cycles) at 50% DoD

Note: Delivery Not Included - Once your order has been placed, our sales team will contact you to confirm delivery fees.

Notes to Specification Sheet

The LiTE 2 Commercial high voltage range is available in HV and HV+. HV models are suitable for the Freedom Won Encore HPS50, 100 and 150 hybrid battery inverters. HV+ is suitable for Freedom Won Encore HPS250 and 500 battery inverters and associated DC charge controllers.

1. Max current duration 5min every 10min. 1.5 x Max overload can be handled for 5 seconds. Current limits rated for 10°C to 25°C battery temperature. Derating will apply outside this temperature range.
2. Excluding protrusions.
3. Battery power connection cables 4.0m long as standard, power cable Red = Positive, Black = Negative, conductors in table refer to one electrode i.e. per positive and negative connections. Up to 8m long available at extra cost (must be specified in order). Note that the battery power connection cables exit the battery on the right-hand side near the floor on all the LiTE 2 Commercial HV and HV+ models. This is to suit the bottom entry of floor standing inverters. A cable trench is recommended for routing this cable along with all the other cables going to and from the inverter (a cable tray is an alternative).
4. Charging below 0°C not permitted. Extended time above 30°C not recommended for optimal battery life.
5. See Freedom Won Warranty document for further detail.
