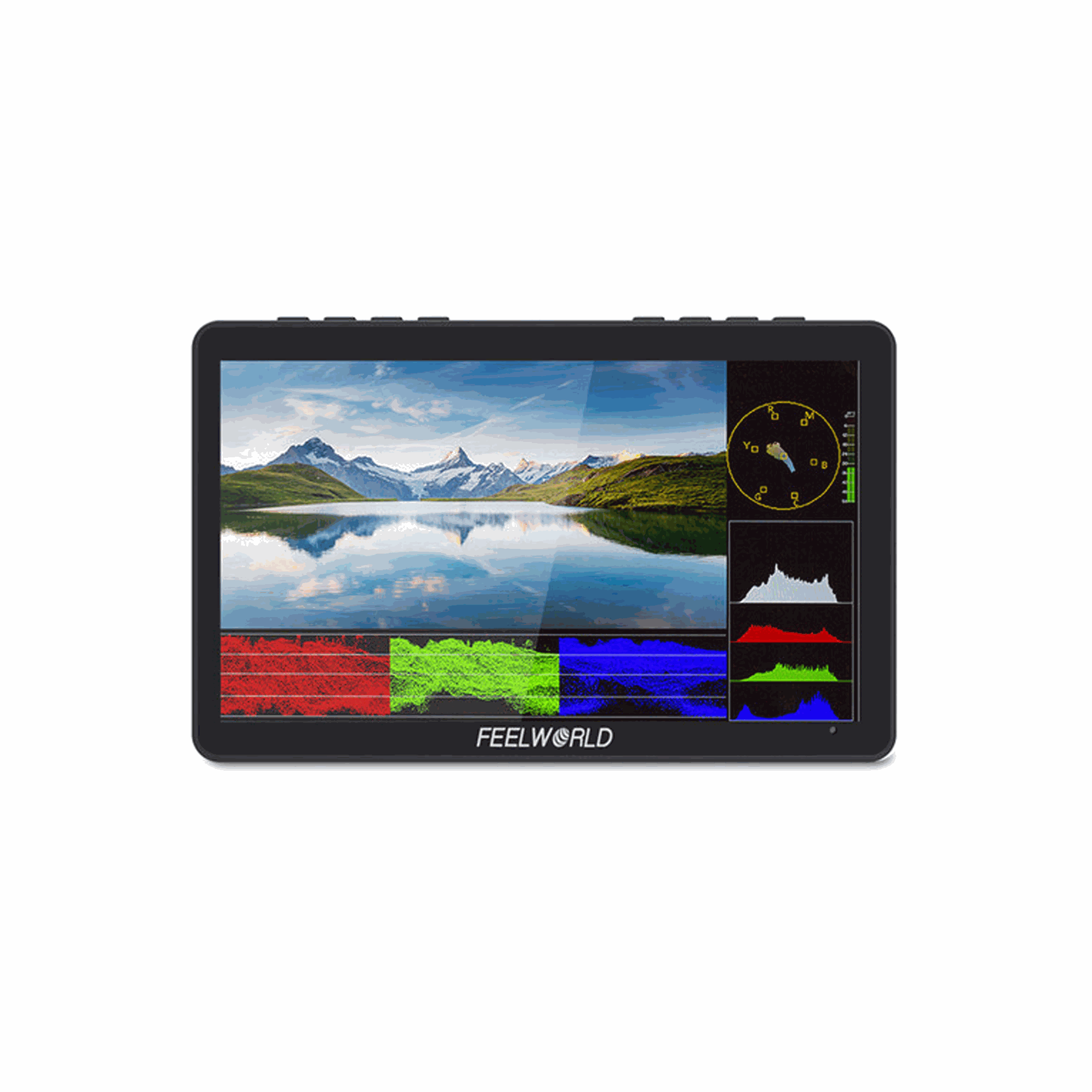

FeelWorld F5 Pro V4 6" 4K HDMI IPS Touchscreen Monitor

FeelWorld F5 PRO V4 Overview

Add a high-resolution monitor to your 4K camera with the F5 Pro V4 6" 4K HDMI IPS Touchscreen Monitor from FeelWorld. The F5 Pro V4 monitor features 1920 x 1080 resolution and supports up to UHD/DCI 4K video. It includes 3D LUT support with built-in LUT profiles and custom 3D LUTs.

Bright Touchscreen Display

The on-camera display 6" IPS display features a bright 1920 x 1080 touchscreen display with a 1000:1 contrast ratio, 450 cd/m² brightness, and a 160° viewing angle.

The interactive touchscreen makes setting up the F5 Pro V4 easy and intuitive. You can use simple tap and swipe gestures to change function settings. You can also turn off the touchscreen function to prevent accidental touches in the menu settings.

Sun Hood

The F5 Pro V4 monitor includes a sun hood, which allows the operator to focus on image quality, avoiding glare and reflection for an optimal viewing experience. Installing the sun hood is simple and fast, making it suitable for outdoor shooting on the go.

Input/Output

An HDMI input and an HDMI loop output allow a live signal to simultaneously display on the F5 Pro V4 and another monitor. The HDMI ports support up to UHD 4K resolutions for viewing detailed, color-accurate images from your camera. You can also monitor audio using the 3.5mm stereo headphone jack.

Power Options

Multiple power options include a DC barrel input port for an optional power adapter, a 5 VDC USB-C input, and an L-series battery plate on the rear for the included battery. An 8.4 VDC barrel output port allows you to power external devices such as cameras and accessories using a separately available cable.

A removable external power kit is also installed on the back of the monitor, so you can mount accessories such as a wireless receiver and power it from your onboard battery.

Mounting Options

The monitor features standard 1/4"-20 mounting threads on the top, bottom, right, and middle back for mounting onto cameras and rigs. You can also install it on a camera rig using the included tilt arm. Other options include mounting it onto a handheld stabilizer or securely onto the top of your camera or cage as a camera operator viewfinder. If you install it on the bottom of a device, you can also combine the image flip function to maintain the correct screen orientation.

Image Options

For accurate exposure, focus, and other characteristics, the F5 Pro V4 is loaded with monitoring features such as vectorscope, histogram, anamorphic mode, and audio level meters. Features include:

• Supports built-in 3D LUTs for Rec. 709 video
• Custom user-loaded 3D LUTs via the USB port
• Brightness histogram
• Peaking focus assist
• False color
• Zebra
• Check field
• Underscan/overscan
• Image flip (H, V, H/V)
• Anamorphic mode (1.3x, 2.0x)
• Center marker
• Image freeze
• Screen marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
• Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
• Color temperature adjustment
• Nine grid
• Zoom (4x, 9x, 16x)
• Aspect ratio
• Pixel-to-pixel
• U/D zoom, L/R zoom
• Zoom all
