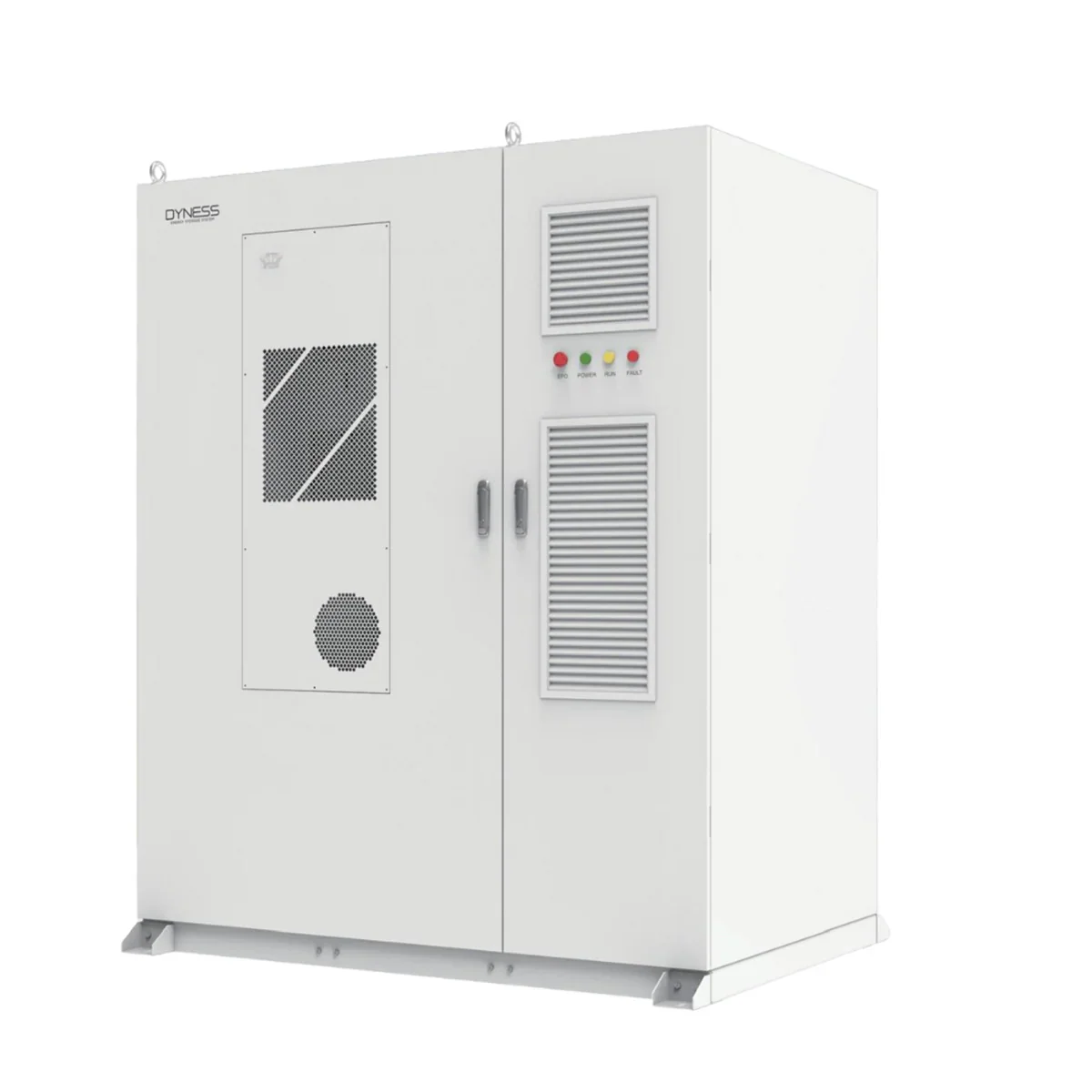

Dyness 100KW Three Phase HV All-In-One System DH200F (3X MPPT)
The Dyness 100kW Three Phase HV All-In-One System DH200F (3X MPPT) combines solar and storage with 3 built-in MPPTs, high-level safety design, and a flexible, expandable modular setup for industrial and commercial use.
Product Features:
- Overall Solar + Storage Solution
- 3 X build in MPPT
- All-In-One Design Concept
- High-Level Safety Design
- Convenient Outdoor Setup
- Allows for Flexible System Design
- Capacity expandable to Megawatts
- Industrial & Commercial Application
- Highly Integrated Modular Design
- AI Self-Monitoring
Technical Specifications:
Battery Specifications:
- Battery Module Type: HV51280F
- Cell Capacity: 280Ah
- Battery Voltage Range: 672~864V
- Nominal Current: 140A (0.5C)
- System Storage Power: 215kWh
AC Specifications (on-grid)
- Nominal Power: 100kW
- AC Nominal Voltage: 400V
- Wiring: 3P4L+PE
- Nominal Frequency: 50Hz
- AC Maximum Current: 158A
- Max. number of BESS in parallel: 12
AC Specifications (off-grid)
- Nominal Power: 100kW
- AC Nominal Voltage: 400V
- Wiring: 3P4L+PE
- Nominal Frequency: 50Hz
- AC Maximum Current: 158A
- Unbalanced Load Capacity: 100%
- On-grid Switching to Off-grid Time: ＜20ms
- Off-grid Switching to On-grid Time: ＜20ms
- Max. number of BESS in parallel: 5
Photovoltaic Input
- MPPT Voltage Range: 200-670V
- MPPT channels: Up to three
- Input Power: Single channel 50kW
System Specifications
- Dimensions(W*D*H): 1850*1200*2250mm
- Weight: ≈3300kg
- Air Conditioner Power: 3kW (Cooling capacity)
- Operation Temperature: -20~50°C
- Operation Humidity: 0~95%(Non-condensing)
- Protection Level: IP55
- Anti-corrosion Level: C3
- Noise Level: ≤75dB
- Cooling System: Fan Cooling
- Firefighting: Aerosol/Heptafluoropropane (FM-200)/Perfluoro
- EMS Communication: Ethernet
Note: Delivery Not Included - Once your order has been placed, our sales team will contact you to confirm delivery fees.
