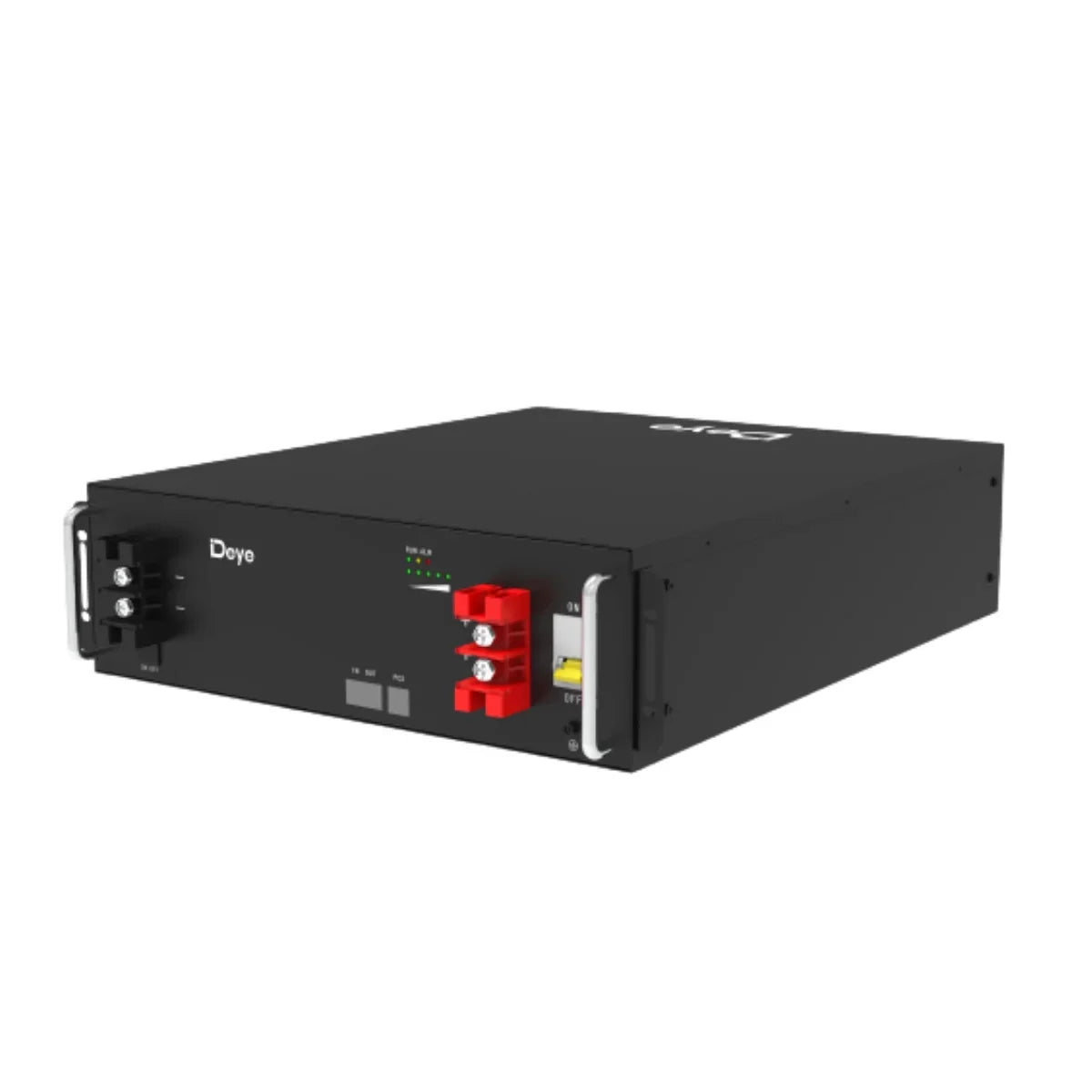

Deye 5.12 kWh 100Ah Lithium Ion Battery

Deye 5.12 kWh 100Ah Lithium Ion Battery

The Deye Residential ESS Battery offers a safe, reliable, and scalable energy storage solution for residential and light commercial applications. Designed with LFP (Lithium Iron Phosphate) chemistry, this battery ensures long-lasting performance, high efficiency, and eco-friendly operation. Its modular design allows up to 64 units in parallel, making it easy to expand your energy capacity as your needs grow. With intelligent BMS, built-in circuit breaker, and remote monitoring capabilities, maintenance is simple and convenient. Ideal for increasing self-consumption and maximizing energy independence, this battery adapts to your lifestyle while maintaining the highest safety standards.

Product Features:

• Safe & Reliable: LFP chemistry, intelligent BMS, built-in circuit breaker, eco-friendly, non-toxic materials.

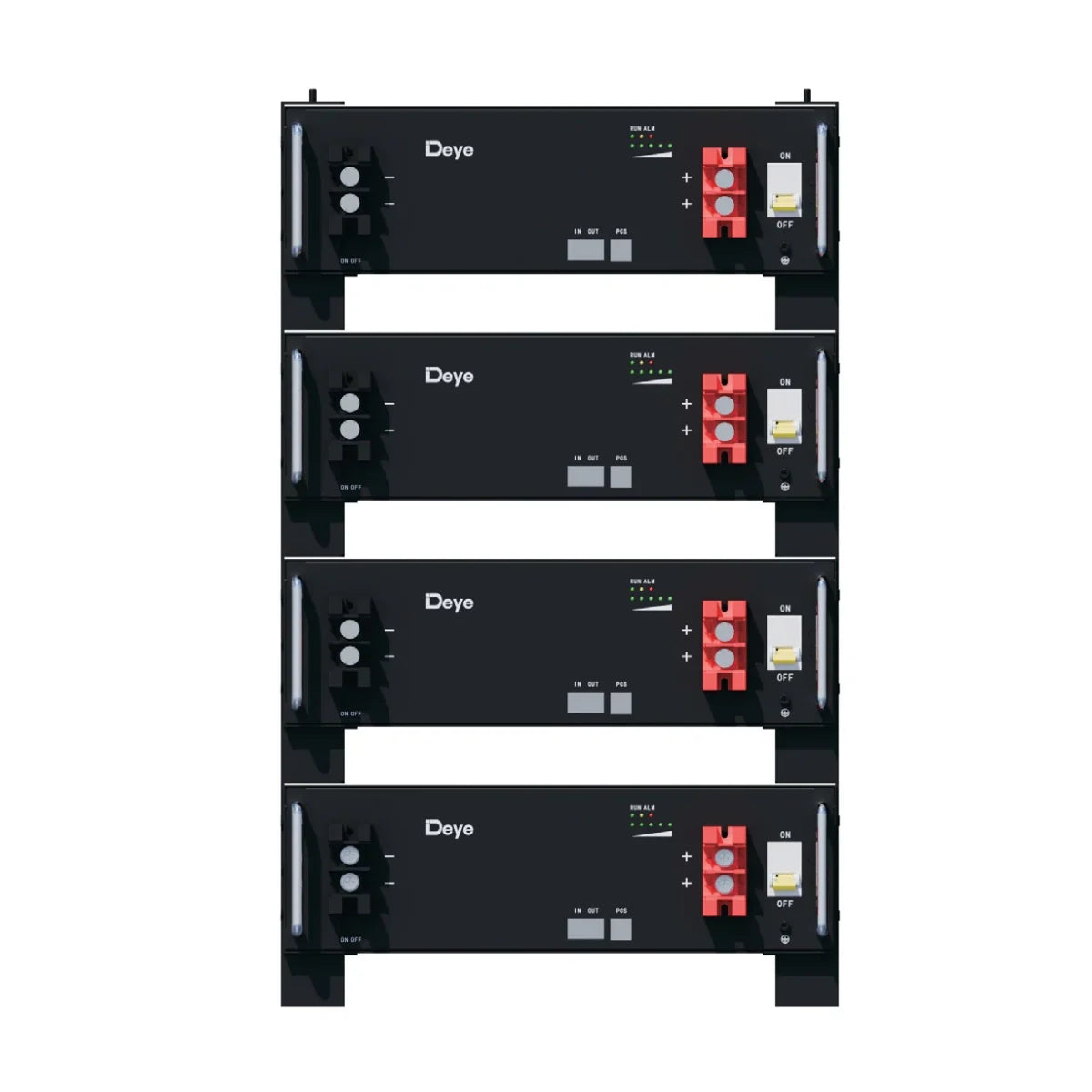

• Scalable & Flexible: Supports up to 64 units in parallel (327kWh / 655kWh).
• Easy Operation & Maintenance: Auto-networking battery modules, no DIP switches required.
• Remote Monitoring & Firmware Upgrade: Supports remote monitoring and firmware updates for optimal performance.
• Over-Discharge Protection: Allows direct recharge after over-discharge, reducing downtime.
• Wide Temperature Range: Operates from -20°C to 55°C, supporting various environments.
• High Performance: Supports 0.5C charge and discharge rates, ensuring efficiency and reliability.
• External Power Supply Activation: Prevents battery suspension, keeping your system stable.
• Residential & Commercial Ready: Designed to maximize self-consumption and energy independence.


Specifications:

• Battery Chemistry: LiFePO4
• Nominal Capacity: 100 Ah
• Nominal Voltage: 51.2 V
• Operating Voltage: 44.8 – 57.6 V
• Nominal Energy: 5.12 kWh
• Cell Configuration: 1P16S
• Scalability: Max. 64 units in parallel (327 kWh)
• Max. Continuous Charge Current: 50 A
• Peak Charge Current (10 sec): 100 A
• Max. Continuous Discharge Current: 50 A
• Peak Discharge Current (10 sec): 100 A
• Recommended Depth of Discharge (DoD): 80%
• Master LED Indicator: 5 LED (SOC 20–100%), 3 LED (working, alarming, protecting)
• Communication Port: CAN2.0, RS485
• IP Rating of Enclosure: IP20
• Operating Temperature: Charge: 0–55°C, Discharge: -20–55°C
• Storage Temperature: 0–35°C
• Relative Humidity: 95%
• Altitude: ≤ 2000 m
• Cycle Life: ≥ 6000 cycles (25°C, 0.2C charge/discharge, 80% DoD, 70% EOL)
• Warranty Period: 5 years
• Installation: Wall-Mounted, Floor-Mounted (Stacked), Rack-Mounted (cabinet depth ≥600mm)
• Certification: UN38.3, MSDS
• Dimensions (W × D × H, mm): 440 × 540 × 133
• Weight (Approx.): 44 kg
