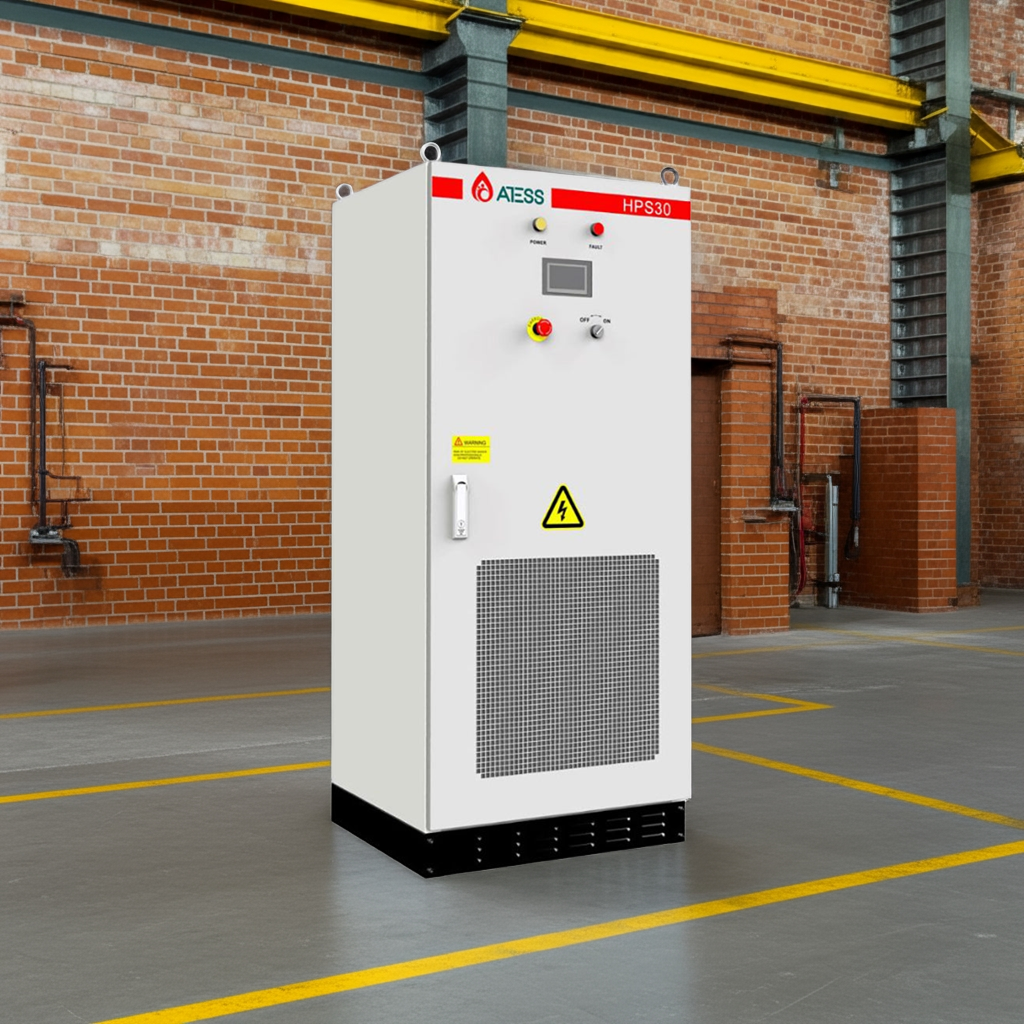

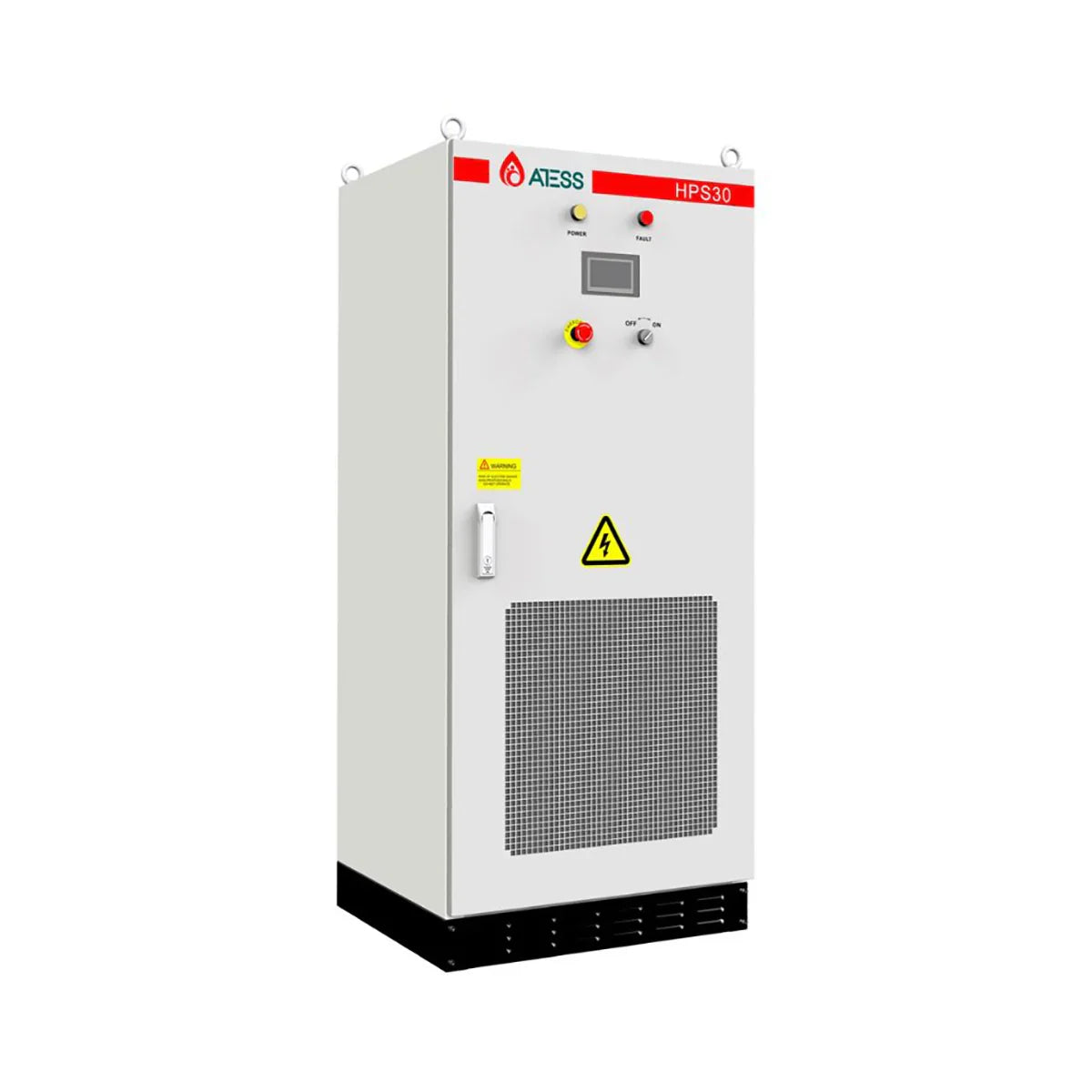

ATESS HPS 30 Hybrid Inverter 30kW 450V

ATESS HPS 30 Hybrid Inverter 30kW  450V

The HPS inverter range is a ALL – in one Hybrid inverter for commercial applications and support up to 4 units in parallel and it would be the  perfect solution for every business out there.

ATESS external CTs and an ATESS energy meter can be connected to enable export power control export.

Product Features:

• 4 units can be paralleled giving a total AC output power of 120kW
• The PV array can be oversized by up to 50% of the rated AC output of the inverter.
• Transformer based inverter - Capable of handling inductive loads effectively making it suitable for industrial based applications.
• Touchscreen LCD user interface.
• Diesel generator integration through the use of the Atess ATS (Automatic Transfer Switch).
• All in one hybrid inverter.
• Standard three-year warranty which can be extended up to seven years thus giving a maximum warranty period of 10 years.
• Integrated export power limitation functionalities.

Specification:

• Weight: - 355kg
• Rated Power: - 30,000W
• Min PPT Voltage: - 480V
• Max PPT Voltage: - 800V
• DC Startup Voltage: - 450V
• DC Shutdown Voltage: - 450V
• Max Input Voltage: - 1,000V
• Max DC Power: - 45,000W
• Max AC Power (5 Minutes): - 33,000W
• Surge AC Power (1 Second): - 36,000W
• Max DC Current: - 90A
• Max DC Inputs: - 1
• Has DC Fuses: - 0
• Connector: - Round Post
• Included Connectors: - 1
• Euro Efficiency: - 95%
• Transformer: - HF
• MPPT Quantity : - 1
• Has Integrated DC Switch: - Yes

Optional other parts:

• Three Phase AC Protection Box 1-In 1-Out 63A Type II SPD
• ATESS Automatic Transfer Switch for HPS30
• 1000V Combiner Box 4 Inputs 1 Output 63A Isolator Type I_II SPD
• 1000V 1-MPPT Combiner Box 8-In 1-Out 160A Isolator Type I_II SPD
